LB2A Smart Active Balancer BMS for Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 24S 150A 200A 300A with APP Control 12V 24V 48V 60V 72V 84V (7-24S, 300A)
Product details
| Management number | 209103161 | Release Date | 2026/03/29 | List Price | $58.40 | Model Number | 209103161 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

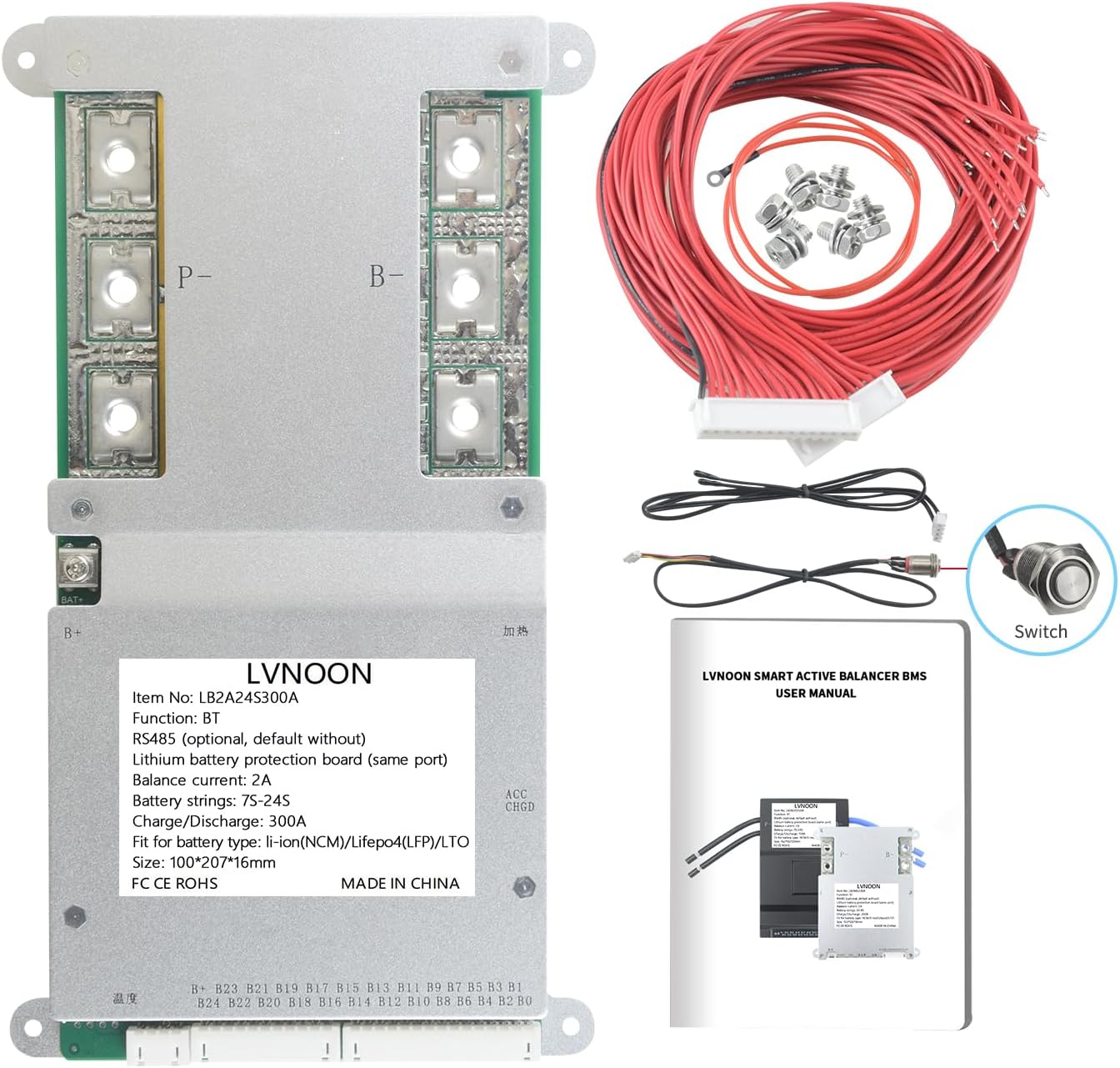

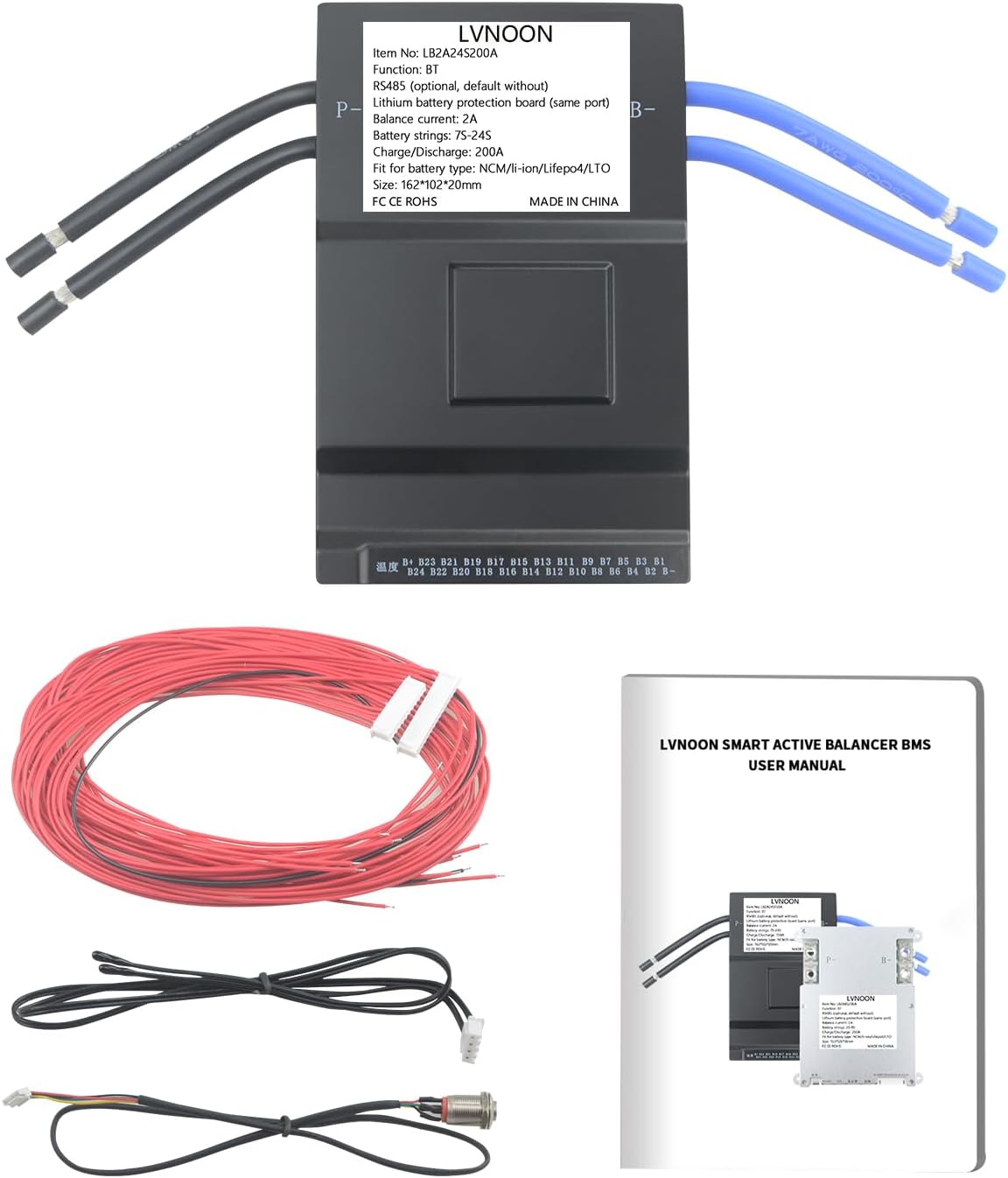

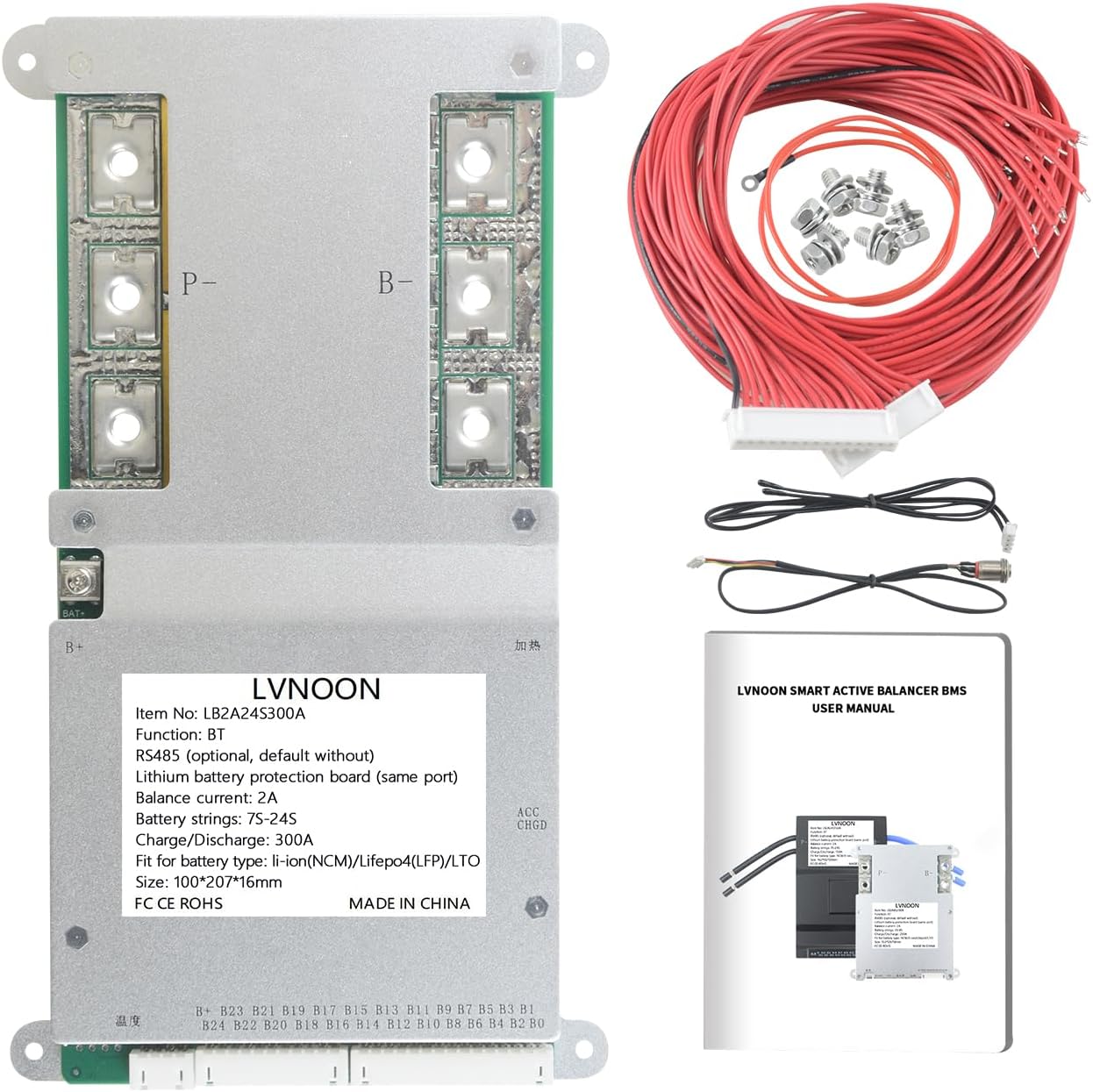

This is LVNOON LB2A series Smart active balance BMS lithium battery protection board with smartphone APP control fit for 100A 150A 200A 300A Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 24S. Balance current: 2A Continuous 150A-200A-300A charge/discharge current Suitable for Li-ion NCM LiFePo4 LTO and other battery types Support series connection, suitable for 3-24S battery packs
- LVNOON LB2A series Smart active balance BMS lithium battery protection board fit for Li-ion NCM LFP LiFePo4 LTO Battery Management System 3S to 24S 150A 200A 300A Continuous charge/discharge current available to choose with smartphone APP control
- Suitable for 1V-5V Li-ion NCM LFP/LiFePo4 LTO battery types. Support series connection, suitable for 3-8S,7-20S, 7--24S stings battery packs with voltage 12V to 84V usage.
- All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection protect your battery better.
- Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high precision voltage acquisition (≤20mV) & high precision current acquisition (≤2%@FS) and Isolated power circuit
- Support more communication: Can add extra RS485 module / GPS module /LCD displays to work with the LVNOON smart active BMS together. If you need "CAN function" or "heat function", please contact us in advance.
- Easy to Use: 1. Weld the wires 2. Download the APP & use switch to activate the BMS 3. Turn on smartphone BT and find the relevant serial number to check all the battery data. The smartphone app fit for IOS & Android smart phones
| UPC | 716172987260 |
|---|---|
| Brand | LVNOON |
| Color | 7-24S |
| Item Weight | 0.6 Kilograms |
| Manufacturer | Zhongshan LVNOON electronics co.,ltd |
| Model Number | LB2A |
| Input Voltage | 72 Volts |
| Current Rating | 200 Amps |
| Output Voltage | 72 Volts |
| Mfr Part Number | LB2A |
| Warranty Description | 1 Year warranty |
| Item Dimensions D x W x H | 0.79"D x 4.02"W x 6.38"H |
